Product Features
1.In ST(standard)machine stalls sigle sliding mold .after operates the mold to complete ,the stamping die automatically slips to the operator front,is advantageous for the operation ,the security is high also the end product goes against also completes in exterior.
2.The multistage temperature control ,the multistage projects the pressure with to project the speed ,projects the back pressure not to have the section adjustment ,suits each kind of precise revertex components taking shape (Engineering plastics)
3.The screw rod L/D ratio is big ,is suitable the special engineering plastics .
4.May expland the computer formula and the automation takes out inserts the equipment segment ,may achieve the entire automation the design .
5.closed mold the straight pressure formula under lock mold cylinder design can fast drop gathers the mold and the idling speed lowly press fits the mold,thothe mold service life ,can be lasting .
6.Projects uses the two -cynlinder balance -like to project the system ,projects steadily is powerful .
7.Electrically controlled may move the gang to bond the demonstration ,the convenient gang bonds removes with the service .
8.Servo motor series can be selected according to customer needs.
9.Screw and clamping force can be selected to use .
Company Advantages
1. Affordable price
2. Factory direct sales, supporting customization.
3. The core accessories are sourced from top Japanese or Taiwanese brands to ensure efficient, stable, and long-lasting performance of the machine.
4. Intelligent CNC computer system: It can monitor the production situation in real-time, adjust molds conveniently and simply, and can also store 999 sets of mold data.
5. The direct pressure hydraulic cylinder locking system provides more precise and efficient mold locking.Infrared safety grating and dual button start design provide dual protection for the personal safety of operators.
6. High precision tubing group can be customized according to customer requirements for more precise technology.
7. Three operating modes: manual, semi-automatic, fully automatic, can be combined with automated production, freeing up productivity

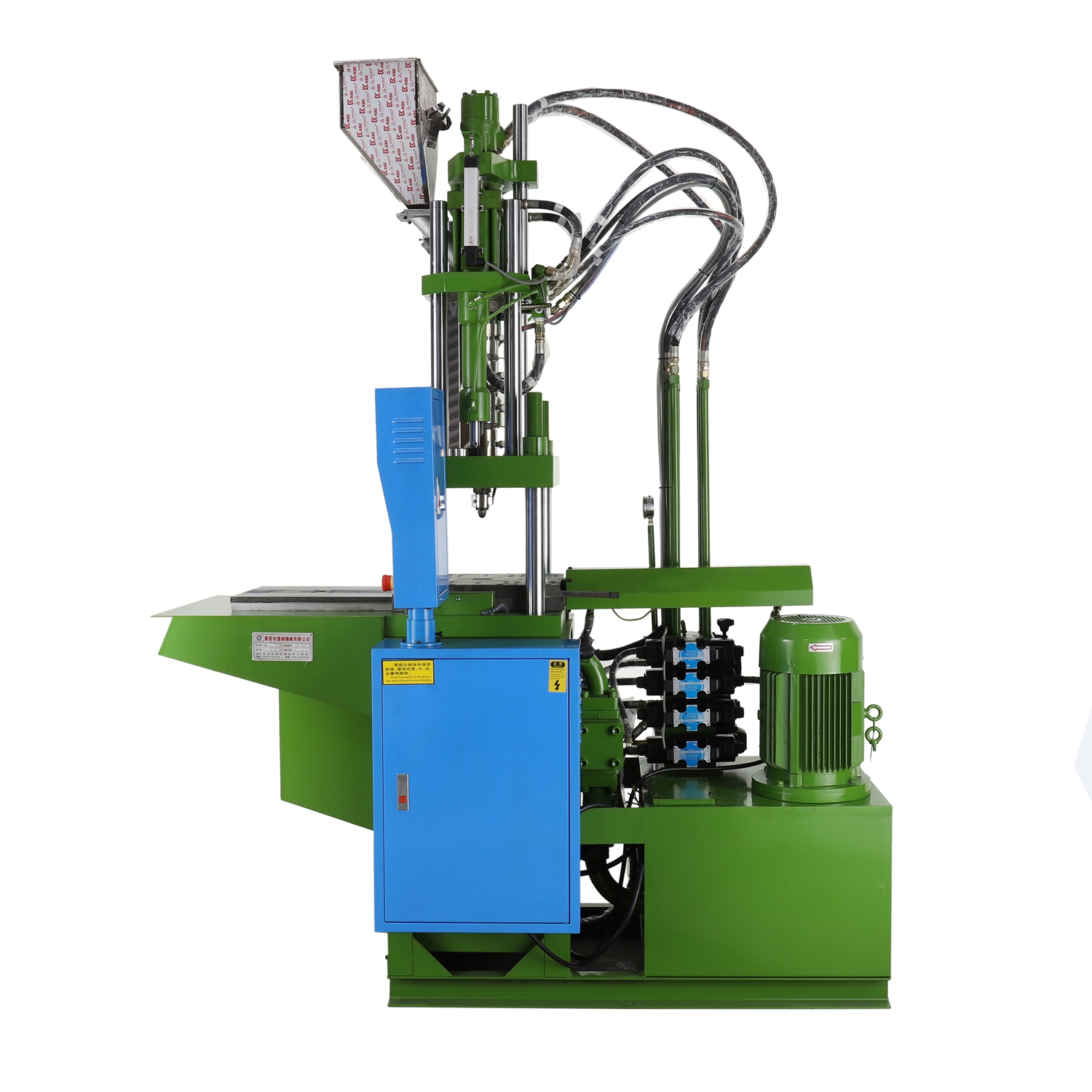

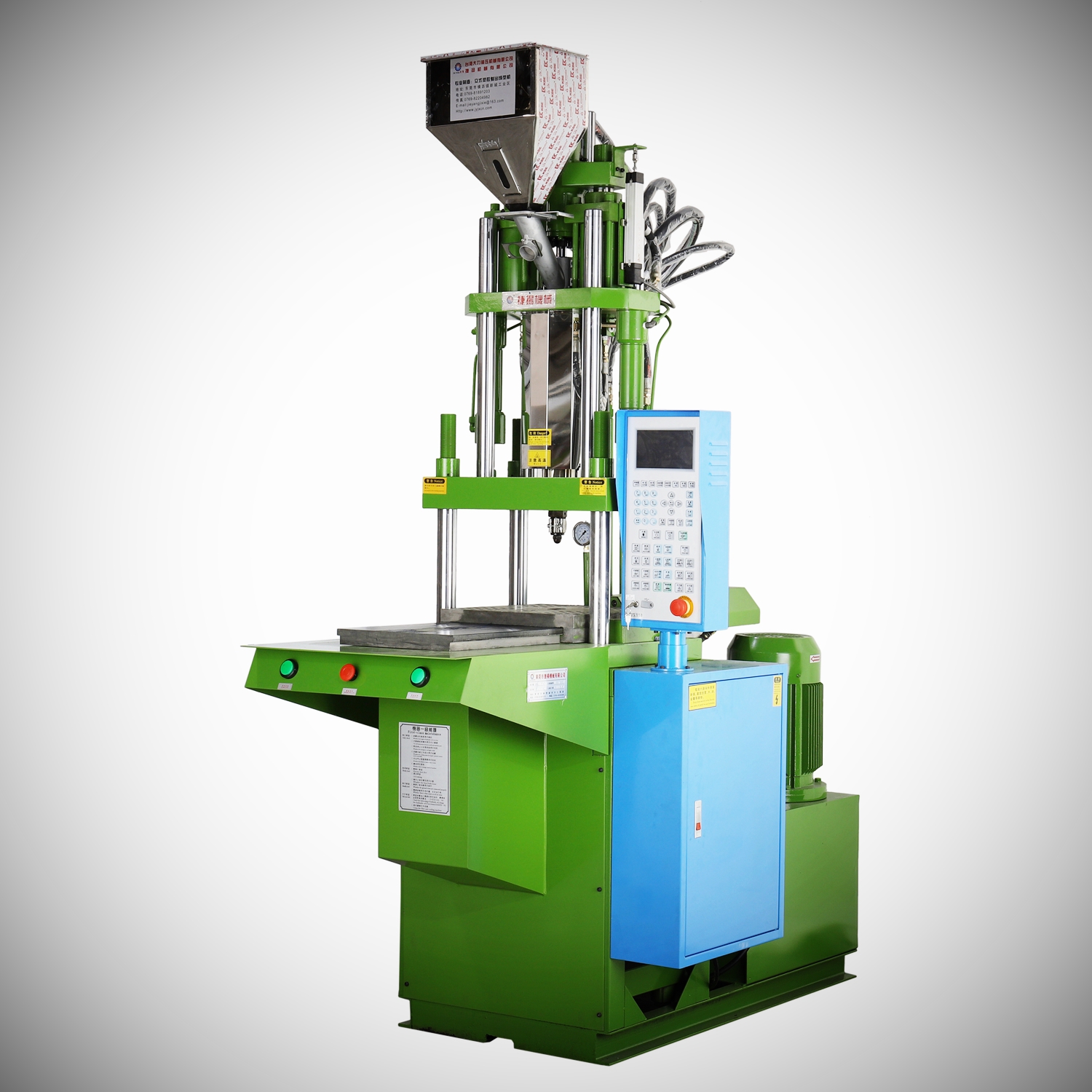

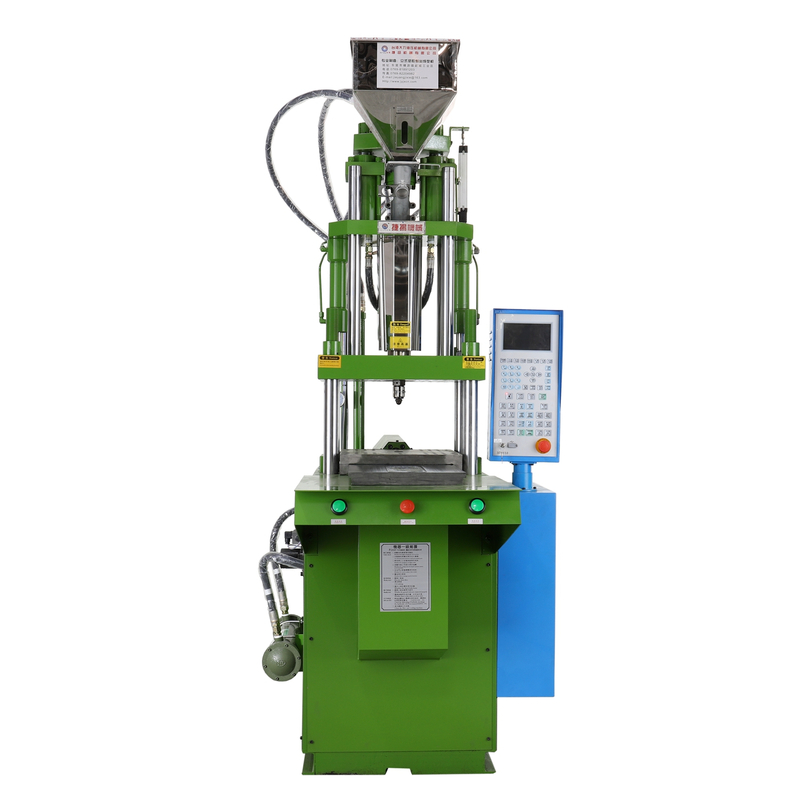

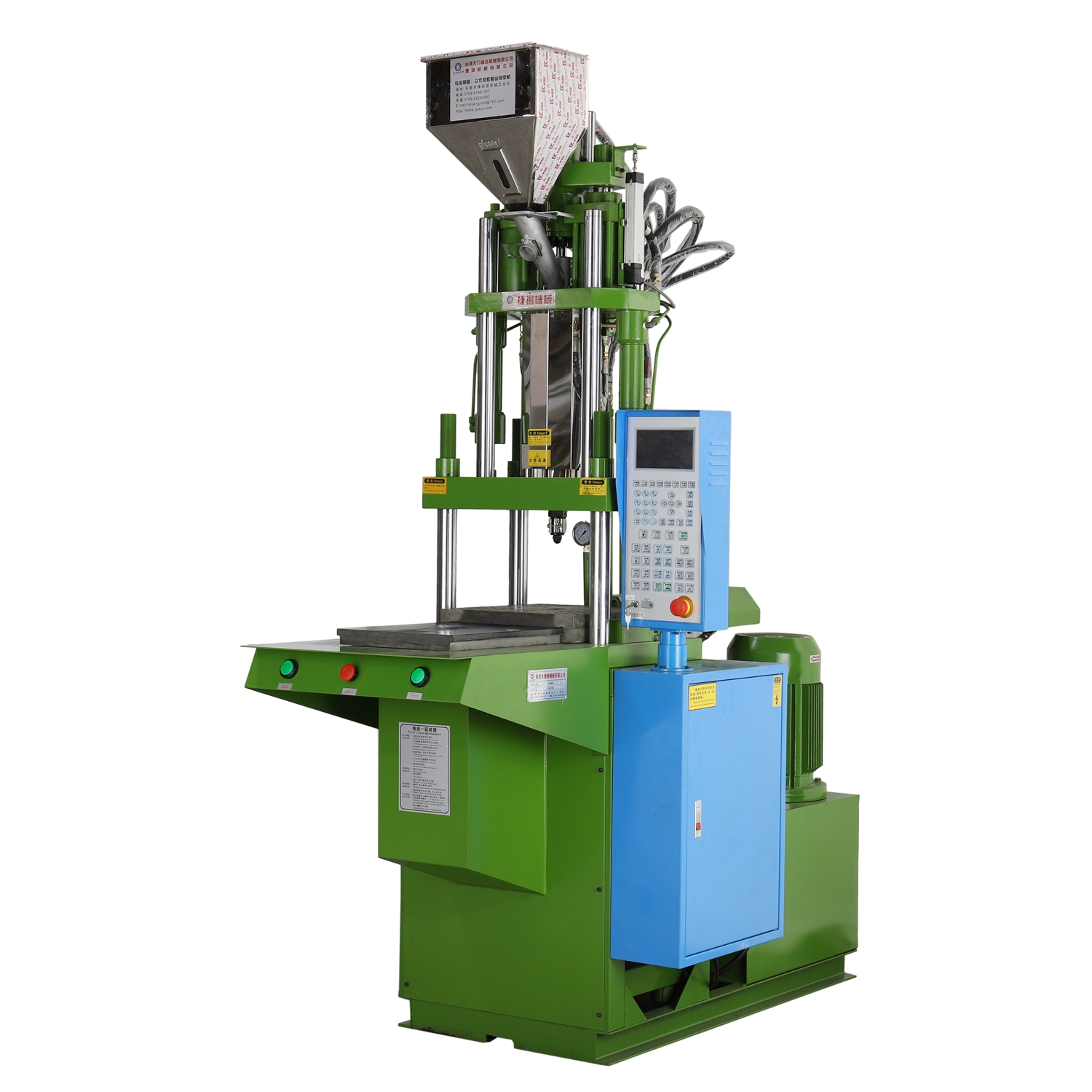

Product Advantages :Single sliding Vertical Injection Molding Machine
1. High operational security:
The single skateboard design allows the lower template to slide out to a safe area after the product is formed, and the operator can take and place the product in a safe position, effectively avoiding the dangers that may be caused by operating in the mold opening and closing area, such as being pinched by the mold, especially suitable for production scenarios that require frequent manual operations.
2. Good production flexibility:
This injection molding machine can place inserts outside the mold locking area, which facilitates the molding of plastic products with inserts and has strong adaptability to the production of complex products.
The movement of a single skateboard can facilitate the replacement and debugging of molds. Compared to some injection molding machines with complex structures, its operation is simpler and faster, and it can quickly adapt to the production needs of different products.
3. High space utilization:
The vertical structure itself occupies a small area, which is an advantage for enterprises with limited production space. The space utilization in the height direction of the machine is relatively sufficient, which can better adapt to some small factories or production sites with spatial layout requirements.
4. High injection precision:
The design of the mold clamping and injection molding system enables the machine to maintain good stability during the injection molding process, which helps to improve the injection molding accuracy of products. For some products that require high dimensional accuracy and quality, such as electronic precision connectors, mobile phone connectors, etc., it has a good molding effect.
5. Easy to implement automation:
The movement of a single skateboard is relatively simple and regular, making it easy to cooperate with automation equipment, such as mechanical arms and other automation devices, to achieve automatic picking and placing of parts, improve production efficiency, and reduce labor costs.

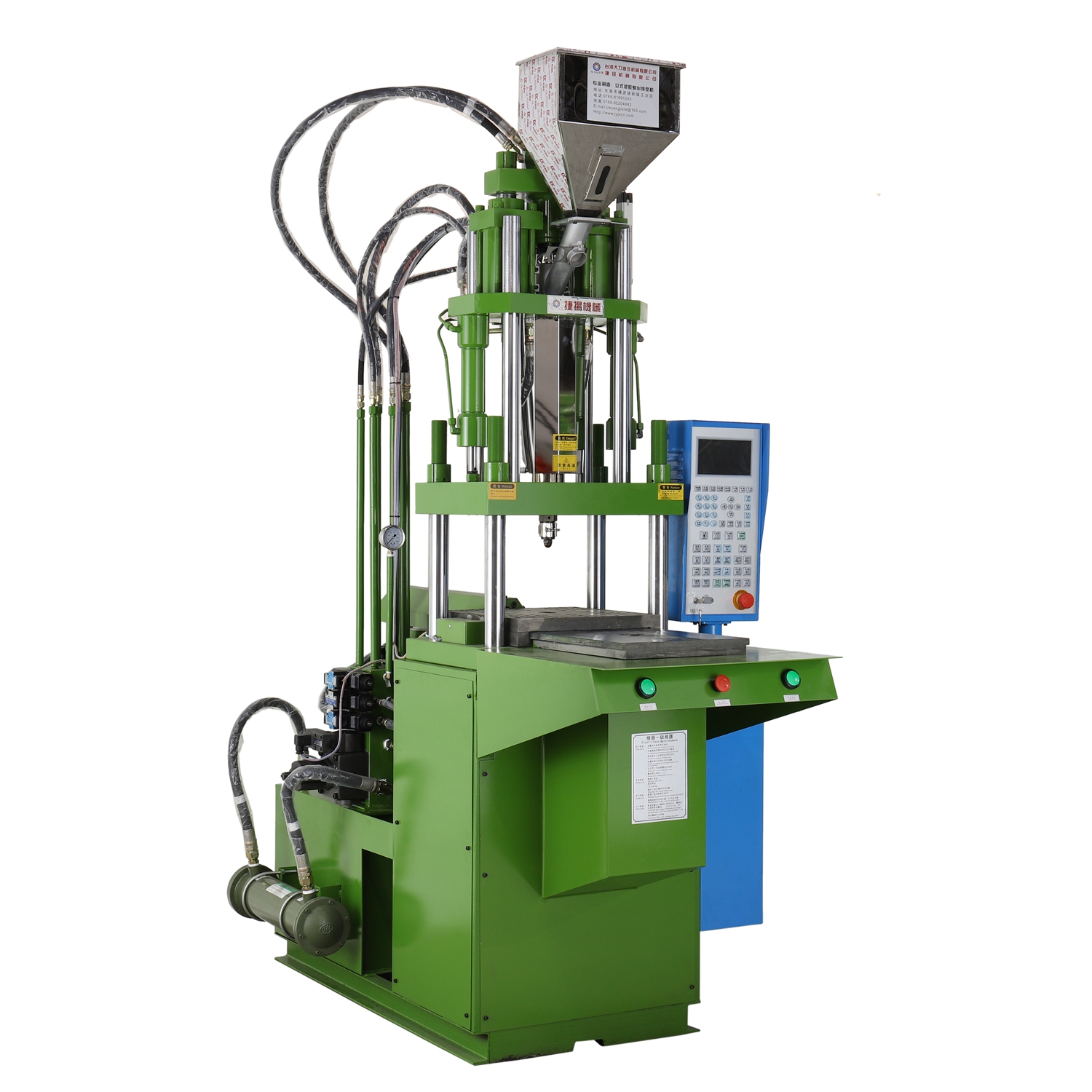

Product specifications (JY-450ST-D)
Model | Unit | JY-450ST-D |
Screw Diameter | mm | 30 | 32 | 34 |
Theoretical Injection Volume | cm3 | 98.9 | 112.5 | 127 |
Injection Weight(PS) | g(oz) | 93.5(3.3) | 106.3(3.75) | 120(4.23) |
Max. Injection Pressure | Mpa(kgf/cm2) | 170.8(1742) | 150(1531) | 133(1356) |
Injection Rate | cm3/s | 53 | 60.3 | 72 |
Injection Speed | mm/s | 75 |
Injection Stroke | mm | 140 |
Screw Speed Rotation | r.p.m | 0-200 |
Number of Temperature Control |
| 3+1 |
Nozzle out from Platens | mm | ≥45 |
Clamping Force | KN(tf) | 441(45) |
Clamping stroke | mm | 200 |
Min.Mold Thickness | mm | 120/220 |
Max.Opening | mm | 350/420 |
(L*W)Distance between tie bars | mm | 410*250 |
(L*W)Max.Mould Size | mm | 350*350 |
(L*W) Slide Size | mm | 390*420 |
Ejector Distance | mm | 85 |
Ejector Force | kn(tf) | 14.7（1.5） |
System Pressure | Mpa(kg/cm2) | 13.7(140) |
Oil Tank Capacity | L | 120 |
Electric Power | KW(HP) | 5.5(7.5) |
Heater Power | KW | 3.4 |
Machine Dimension (L*W) | m | 1.72*1.1 |
| Machine Dimension H(min/max) | m | 2.26/2.9 |
Machine Weight | tf | 1.8 |
Scope of Application
We focus on the research and production of vertical injection molding machines and molds, with over 15 years of industry experience, serving a wide range of industries that have strict requirements for precision and efficient injection molding. Our equipment is particularly suitable for the manufacturing of the following types of products:
1. In the field of electronics and electrical engineering
Suitable for injection molding of various metal inserts, plug inserts, heat-resistant and high-voltage accessories, etc.:
Connectors, USB plugs, circular connectors, DC sockets
Power plug, socket housing, electrical switch components
LED lamp head, lamp cup, LED module housing
Electric wood switch, electric wood terminal, electric wood high-temperature insulation component
2. Medical and personal care industry
Suitable for injection molded products with high requirements for precision, cleanliness, and consistency:
Disposable blood collection needle, medical plastic components

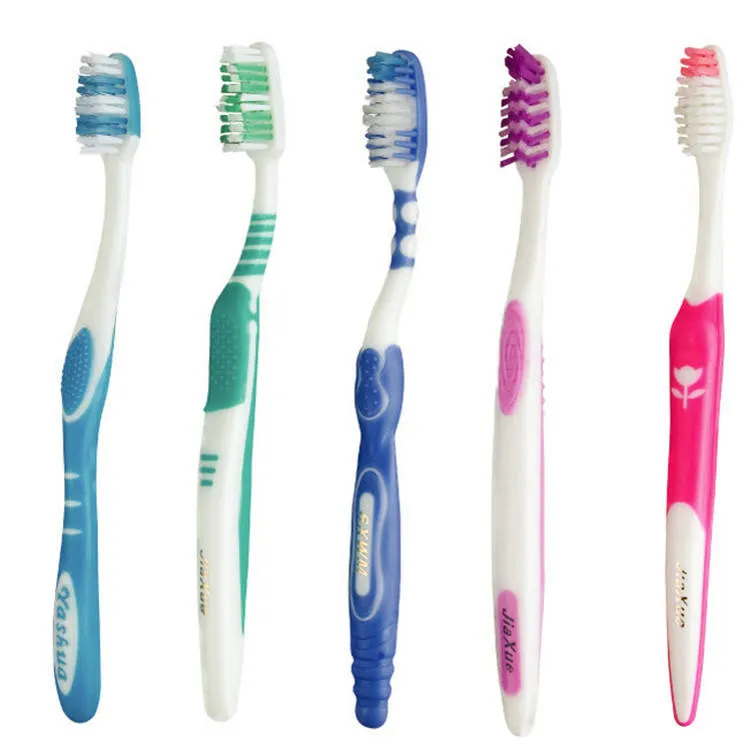

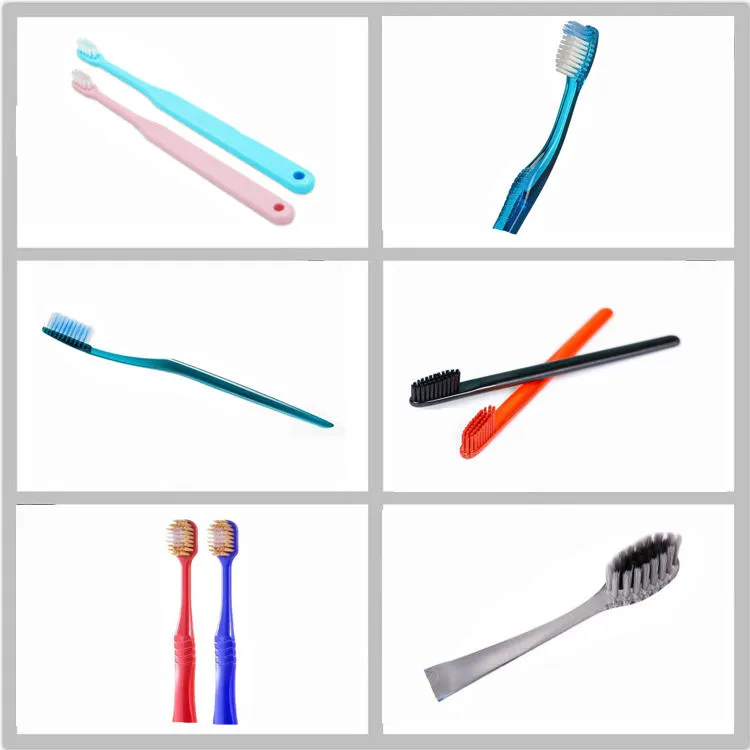

Dental floss, dental brush, dental accessories
Baby products, silicone kitchenware, personal care tools
3. Automotive and Industrial Parts
Suitable for functional components that are durable, structurally complex, or have metal inserts:
Automotive wiring harness connectors, terminal housings, fuse holders
Plastic gears, functional components, industrial plastic connectors
Electric wood vehicle components, high-temperature insulation components
4. Daily consumer goods and customized parts
Support diversified structural design and small batch production needs:
Toy accessories, small plastic packaging fasteners
Jewelry injection molding, daily necessities embedded molding
Customized small items, multi-color/multi material composite parts
We can provide customized solutions and case references based on your samples or drawings to help you improve production efficiency and product quality.
Why choose us?
● The source factory of injection molding machines with 15 years of R&D, manufacturing and sales experience
● Visual production of complete machine by xiaomi app
● Complete sets certification such as CE,ISO...
● SGS certificated top quality factory
● 7*24 hours online service
● 3 days drawings making and 20 days delivery of customized machine model
● Customized machine controller languages
● Video type machine manual
● Technical documents available on website.
● 200 sets machines monthly production capacity
Our Mission:
Pursue happiness of both physical and spiritual of all employees.
Contribute to the progress of Chinese machinery industry
Our Vision:
Join hands with global best quality suppliers
Serve the world with Chinese equipments
Create a leading brand in Chinese machinery projects
FAQ
Q: Which city are you in? How can visit you? Are you a trading company or factory?
A:Our factory is next to Guangzhou and Shenzhen. We will drive you to our factory by car when you arrive at Dongguan or Changping Railway(Bus) station. We are factory, manufacturing mainly plastic injection molding machines. We offer turnkey solutions with more than 10 years experience.
Q: What is the warranty period for your machine ?
A:12 months warranty for components and technical support .
Q: What is the lead time?
A:For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization and busy season.)
Q: How about the service?
A:We provide life-long online service for solving your problems.
