Product Features
1.In-line screw type injection apparatus.
2.Temperature control.three-stage.fast,back pressure,screw speed stepless adjustment for a variety of precision plastic parts molding.
3.The lower mold fixed on the movable mold,insert items for a good positioning of the resistance,and has finished top of the device.
4.The low-pressure mold clamping device protection security.
5.The tube can lift,clean and convenient material head,fixed moldeasier.
6.Can be installed with a single mode skateboards,skateboard or alternating dual mode.
.
Advantages
1. Affordable price and small size.
2. Factory direct sales, supporting customization.
3. The core accessories are sourced from top Japanese or Taiwanese brands to ensure efficient, stable, and long-lasting performance of the machine.
4. Intelligent CNC computer system: It can monitor the production situation in real-time, adjust molds conveniently and simply, and can also store 999 sets of mold data.
5. The direct pressure hydraulic cylinder locking system provides more precise and efficient mold locking.Infrared safety grating and dual button start design provide dual protection for the personal safety of operators.
6. High precision tubing group can be customized according to customer requirements for more precise technology.
7. Three operating modes: manual, semi-automatic, fully automatic, can be combined with automated production, freeing up productivity

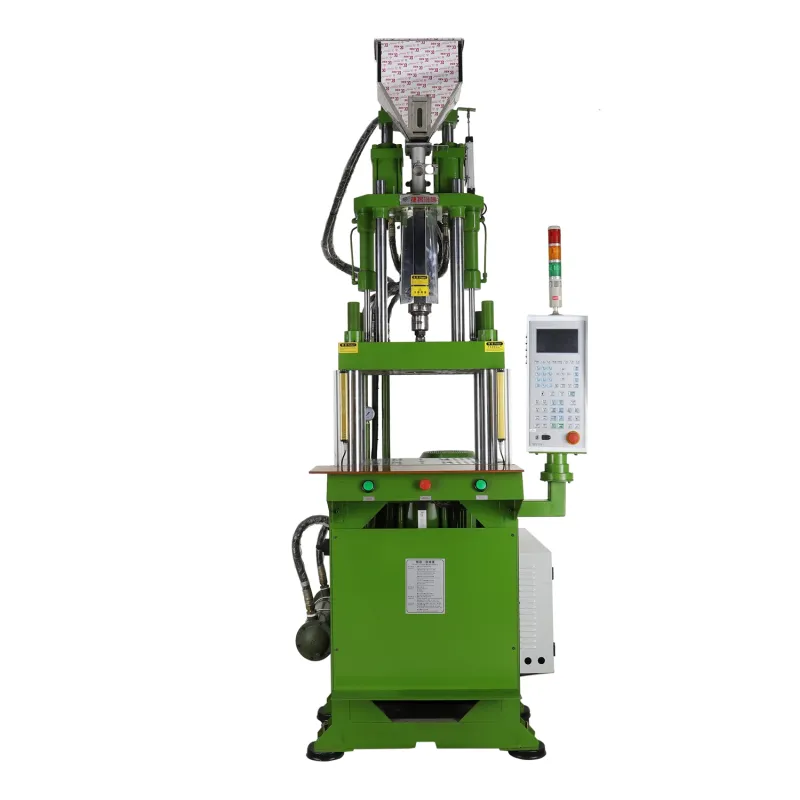

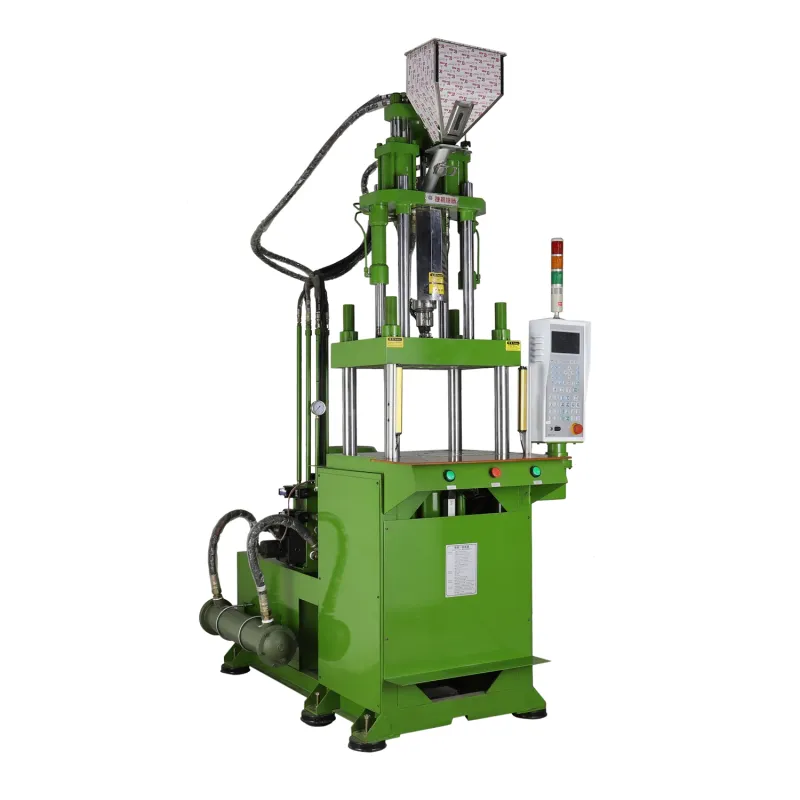

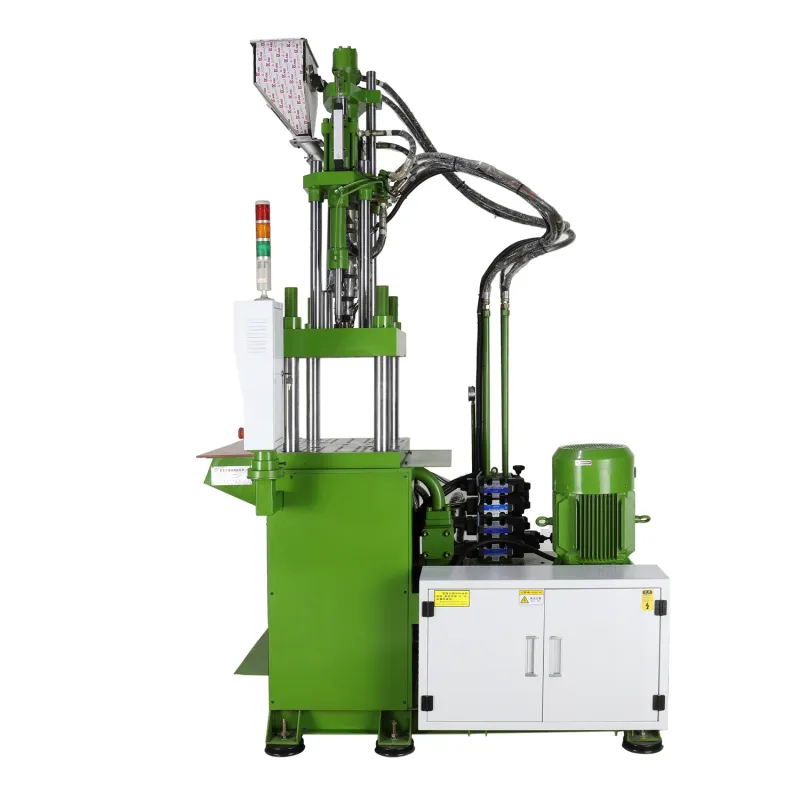

Product specifications (JY_1200ST)
Model | Unit | JY-1200ST |
Screw Diameter | mm | 40 | 45 | 50 |
Theoretical Injection Volume | cm3 | 226 | 286 | 353 |
Injection Weight(PS) | g(oz) | 213.6(7.5) | 270(7.5) | 333.8(11.8) |
Max. Injection Pressure | Mpa(kgf/cm2) | 180(1837) | 142(1452) | 115.5(1176) |
Injection Rate | cm3/s | 109.2 | 138.3 | 170.7 |
Injection Speed | mm/s | 87 |
Injection Stroke | mm | 180 |
Screw Speed Rotation | r.p.m | 0-250 |
Number of Temperature Control | pcs | 3+1 |
Nozzle out from Platens | mm | ≥45 |
Clamping Force | KN(tf) | 1176(120) |
Clamping stroke | mm | 280 |
Min.Mold Thickness | mm | 280/380 |
Max.Opening | mm | 560/660 |
(L*W)Distance between tie bars | mm | 760*420 |
(L*W)Max.Mould Size | mm | 740*500 |
(L*W) Platen Size | mm | 980*640 |
Ejector Distance | mm | 95 |
Ejector Force | kn(tf) | 45（4.6） |
System Pressure | Mpa(kg/cm2) | 13.7(140) |
Oil Tank Capacity | L | 350 |
Electric Power | KW(HP) | 15(20) |
Heater Power | KW | 10.7 |
Machine Dimension (L*W) | m | 2.1*1.75 |
| Machine Dimension H(min/max) | m | 3.15/4.3 |
Machine Weight | tf | 5.5 |

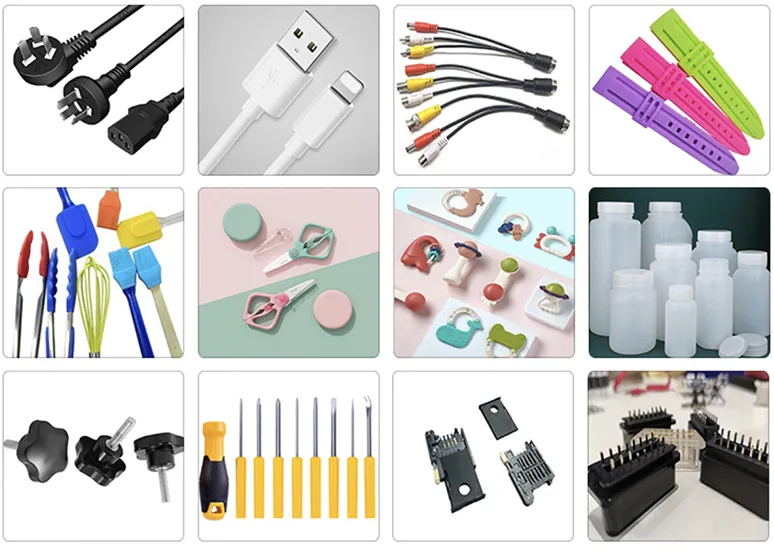

Scope of Application
We focus on the research and production of vertical injection molding machines and molds, with over 15 years of industry experience, serving a wide range of industries that have strict requirements for precision and efficient injection molding. Our equipment is particularly suitable for the manufacturing of the following types of products:
1. In the field of electronics and electrical engineering
Suitable for injection molding of various metal inserts, plug inserts, heat-resistant and high-voltage accessories, etc.:
Connectors, USB plugs, circular connectors, DC sockets
Power plug, socket housing, electrical switch components
LED lamp head, lamp cup, LED module housing
Electric wood switch, electric wood terminal, electric wood high-temperature insulation component
2. Medical and personal care industry
Suitable for injection molded products with high requirements for precision, cleanliness, and consistency:
Disposable blood collection needle, medical plastic components
Dental floss, dental brush, dental accessories
Baby products, silicone kitchenware, personal care tools
3. Automotive and Industrial Parts
Suitable for functional components that are durable, structurally complex, or have metal inserts:
Automotive wiring harness connectors, terminal housings, fuse holders
Plastic gears, functional components, industrial plastic connectors
Electric wood vehicle components, high-temperature insulation components
4. Daily consumer goods and customized parts
Support diversified structural design and small batch production needs:
Toy accessories, small plastic packaging fasteners
Jewelry injection molding, daily necessities embedded molding
Customized small items, multi-color/multi material composite parts
We can provide customized solutions and case references based on your samples or drawings to help you improve production efficiency and product quality.
