Product features

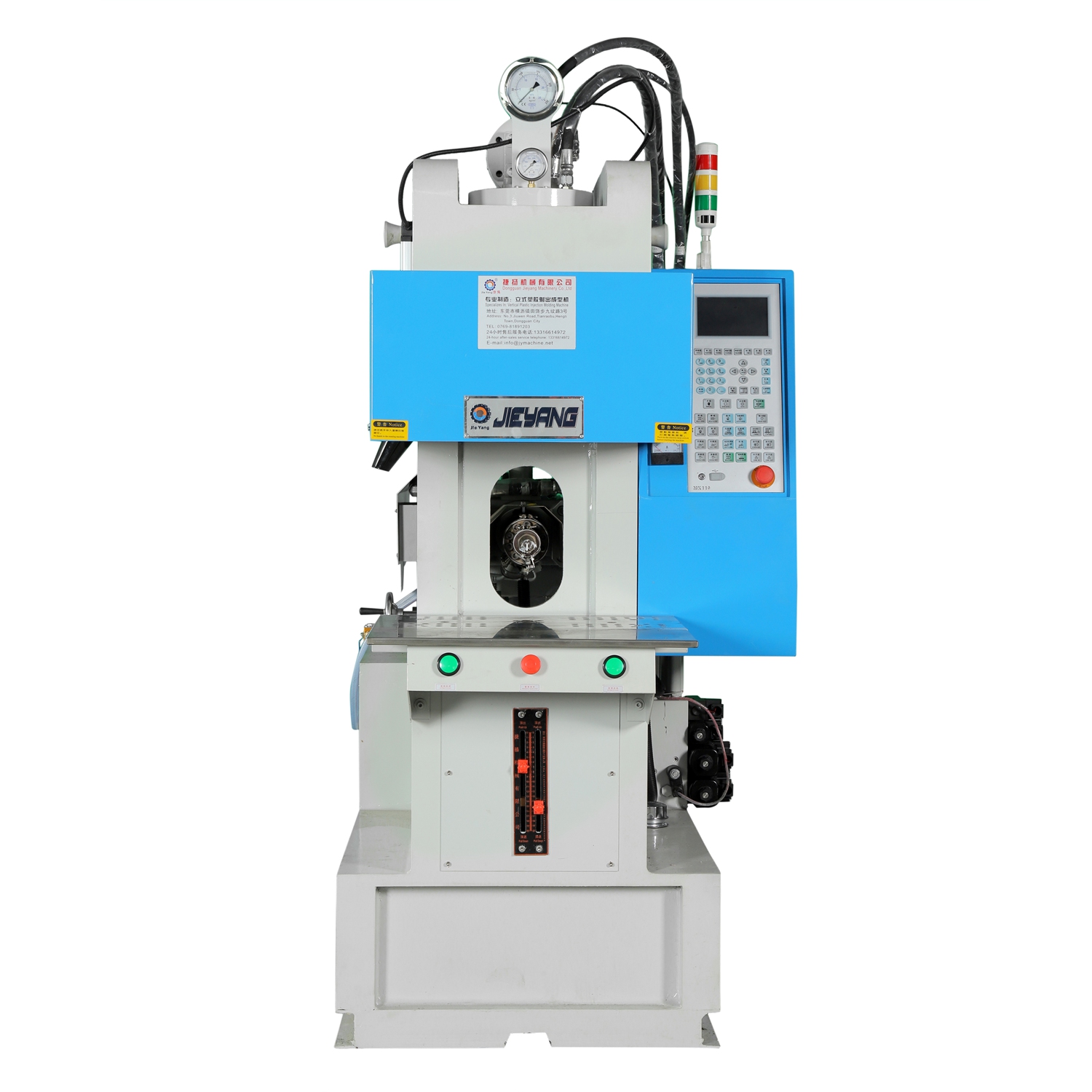

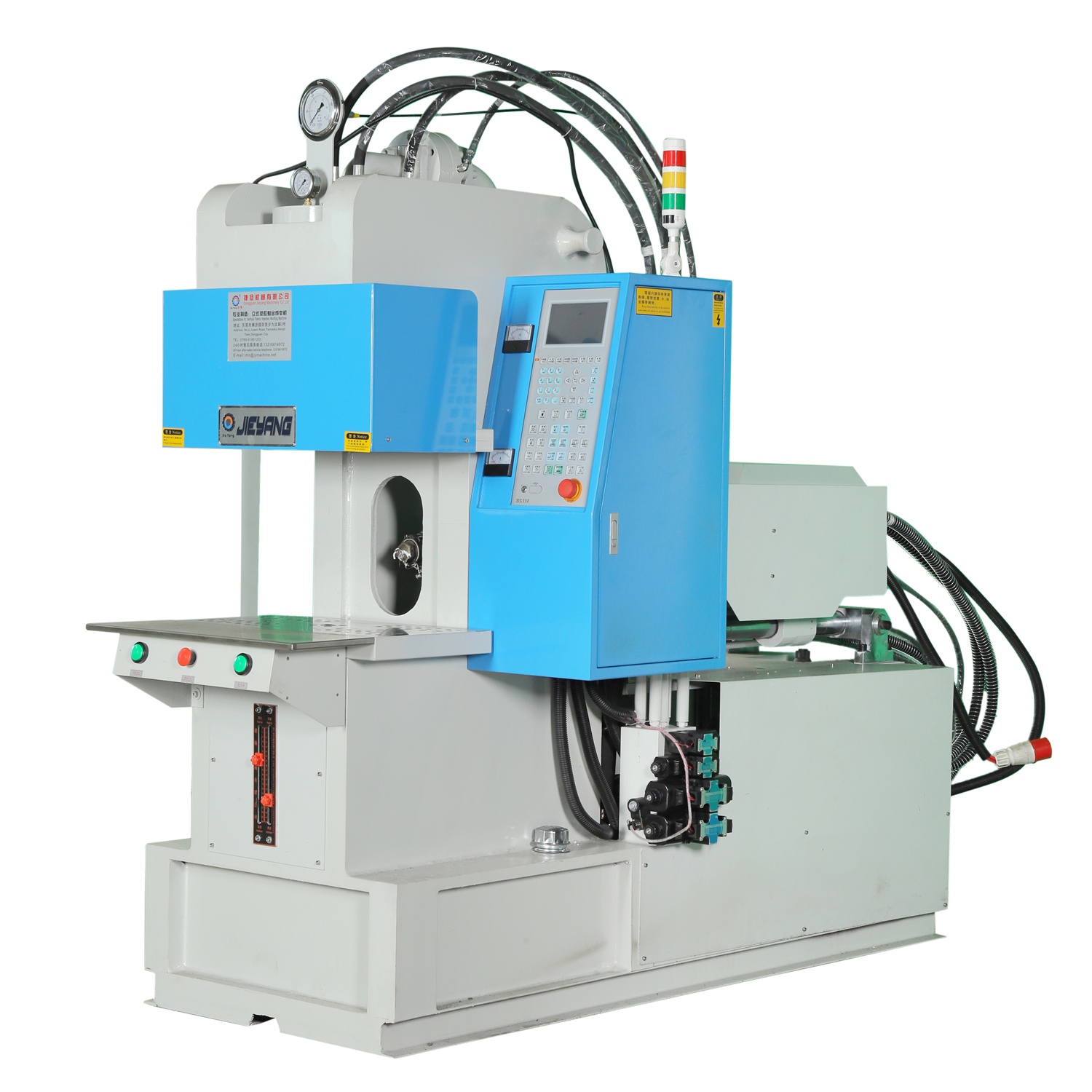

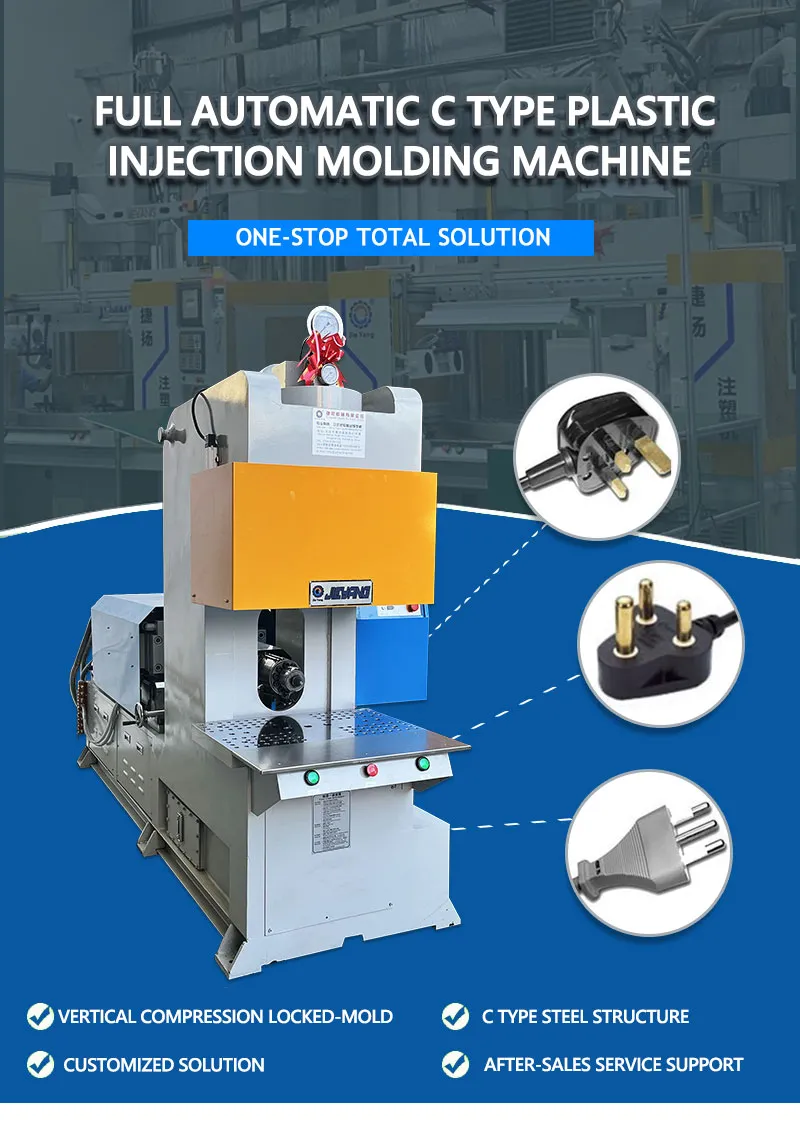

1. Vertical Compression Mold-Locking & Horizontal Injection Design
Features a vertical compression mold-locking structure paired with a horizontal injection system for stable, high-precision molding.
Three-sided open design without vertical columns allows easy access for insert placement, product removal, and automated operations.
Equipped with a bilingual Chinese/English controller and full-screen display for intuitive and precise machine adjustment.
Dual proportional pressure control and optimized oil-flow management deliver high pressure, fast response, and smooth operation.

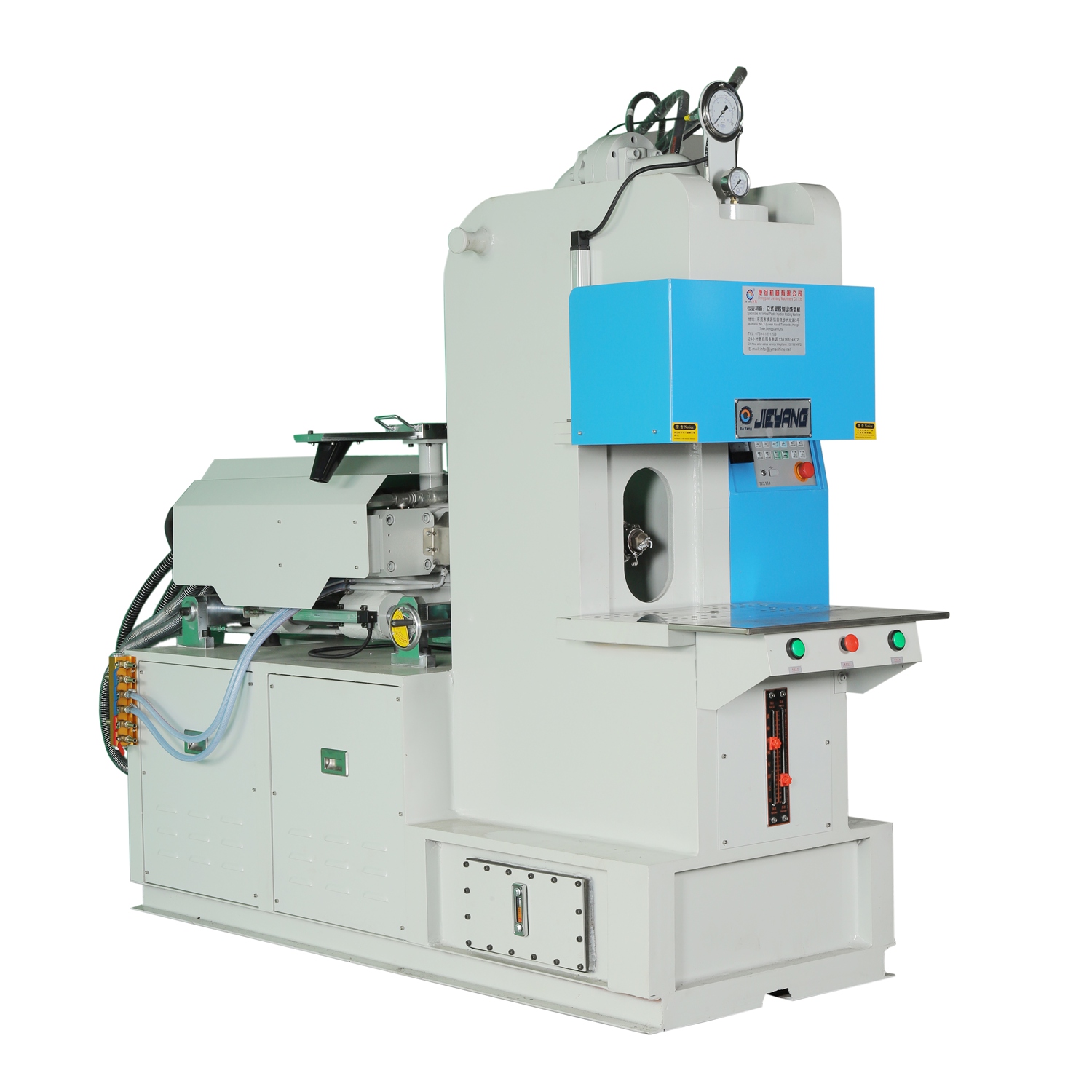

2. High-Rigidity C-Type Steel Frame for Enhanced Stability
The integrated C-type steel structure ensures minimal deformation under high pressure, improving consistency and product accuracy.
Dual-cylinder injection system provides strong, balanced injection force, supporting durable, long-life performance.
Barrier-free structure enhances convenience for manual or robotic insert loading and ensures compatibility with automated systems.
3. Adjustable Injection Base for Easy Setup & Calibration
The injection base height can be adjusted manually or automatically to ensure correct mold alignment and central positioning.
Simplifies mold installation, debugging, and daily maintenance.
Prevents material leakage during production, ensuring clean and stable operation.
4. Multiple Oil System Configurations for Performance Customization
Offers several hydraulic system options including semi-closed, fully closed, servo-driven, and high-speed injection systems.
Enables customers to choose the ideal setup based on performance requirements, energy efficiency needs, and material characteristics.
5. Diverse Structural Options for Different Production Needs
Machine can be configured in multiple modes: standard type, single sliding plate, double sliding plate, or rotary table (2-position, 3-position, or more).
Supports a wide range of applications, including insert molding, multi-station production, and high-efficiency automatic processes.
Adaptable to complex products, multi-step molding processes, and varied mold sizes.
Model | Unit | JY-550C |
Screw Barrel Diameter | mm | 38 | 42 | 45 |
Injection Pressure | kgf/cm | 1454 | 1190 | 1037 |
Theoretical Shot Volume | cm3 | 215.4 | 263 | 302 |
Max. Shot Weight | gram | 203.5 | 248.6 | 285 |
Safe Shot Weight | ounce | 7.17 | 8.77 | 10.06 |
Injection Stroke | mm | 190 |
Screw Speed Rotation | rpm | 0-180 |
Nozzle Contact Force | Tons | 1.5 |
Nozzle Stroke | mm | 190 |
Number of Temperature Control | pcs | 3+1 |
Clamping Force | Tons | 55 |
Platen Size | mm | 635*275 |
Min. Mold Height | mm | 175 |
Opening Stroke | mm | 200 |
Max. Opening Distance | mm | 375 |
Ejetor Force | Tons | 1.5 |
Ejetor Stoke | mm | 100 |
Max. Hydraulic Pressure | kgf/cm2 | 140 |
Oil Resservoir Capacity | L | 160 |
Pump Motor Power | KW/HP | 7.5/10 |
Barrel Heating Power | KW | 4.35 |
Total Power | KW | 11.85 |
Machine Weight | Tons | 2.8 |

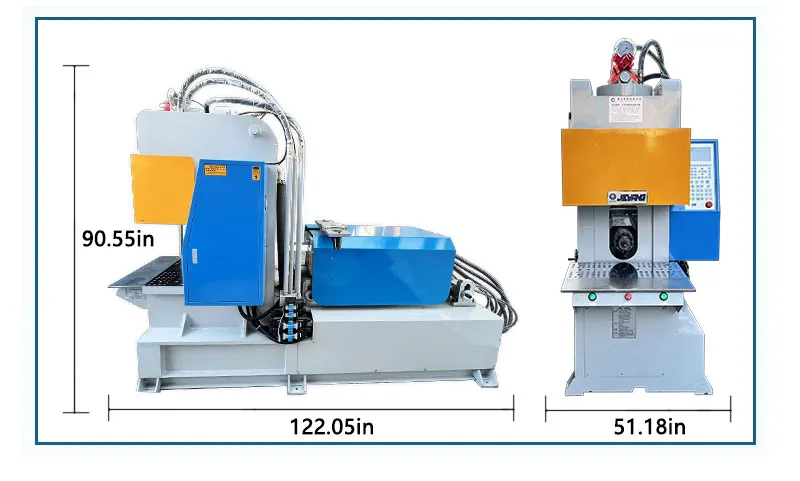

Machine Dimension(LxWxH) | m | 3.1*1.1*2.25 |
Why choose us?
● The source factory of injection molding machines with 15 years of R&D, manufacturing and sales experience
● Visual production of complete machine by xiaomi app
● Complete sets certification such as CE,ISO...
● SGS certificated top quality factory
● 7*24 hours online service
● 3 days drawings making and 20 days delivery of customized machine model
● Customized machine controller languages
● Video type machine manual
● Technical documents available on website.
● 200 sets machines monthly production capacity
Our Mission:
Pursue happiness of both physical and spiritual of all employees.
Contribute to the progress of Chinese machinery industry
Our Vision:
Join hands with global best quality suppliers
Serve the world with Chinese equipments
Create a leading brand in Chinese machinery projects
FAQ
Q: Which city are you in? How can visit you? Are you a trading company or factory?
A:Our factory is next to Guangzhou and Shenzhen. We will drive you to our factory by car when you arrive at Dongguan or Changping Railway(Bus) station. We are factory, manufacturing mainly plastic injection molding machines. We offer turnkey solutions with more than 10 years experience.
Q: What is the warranty period for your machine ?
A:12 months warranty for components and technical support .
Q: What is the lead time?
A:For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization and busy season.)
Q: How about the service?
A:We provide life-long online service for solving your problems.
